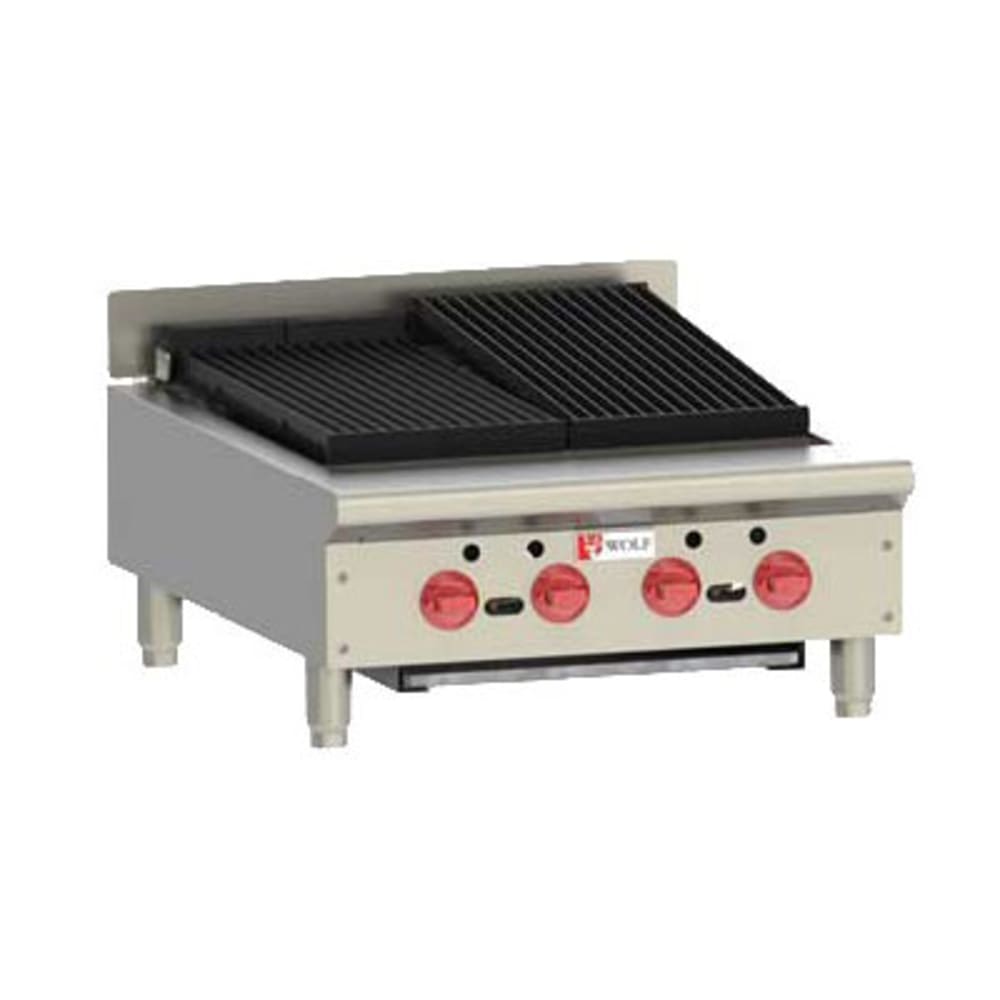

Wolf ACB25-102 25 1/8" Gas Charbroiler w/ (4) Burners & Cast Iron Grates - Manual, Liquid Propane

Spanning 25.15 inches in width, the Wolf ACB25 commercial charbroiler boasts a cooking area of 21.5 inches by 22.31 inches, equipped with four evenly spaced natural gas burners beneath. Each burner operates independently through its own valve, offering a versatile cooking zone configuration. The unit features radiants situated beneath the broiling section to capture and redirect burner heat upwards, enhancing cooking efficiency. Additionally, partitions between burners minimize the transfer of heat across different zones.

The Wolf ACB25 gas charbroiler incorporates a heat deflector mechanism to direct heat away from the grease drawer, thereby maintaining a cooler area that facilitates easier cleaning. Its construction includes a stainless steel control panel, top surface, backsplash, grease trough, and sides, all built to withstand corrosion and support the rigors of commercial use with its fully welded chassis. To further accommodate operational convenience, the charbroiler is fitted with adjustable legs, raising it to an optimal height above the countertop.

Product Details

• (4) 17,000-BTU burners with individual controls and infinite heat control valves
• Engraved valve adjustment marks facilitate installation
• Cast iron char-radiants absorb burners' heat and deflect it to the cooking surface
• (4) 5.25-in.-wide cast iron diamond grates
• Burner dividers minimize heat transfer to different zones
• Heat deflector tray system creates a cooler zone in the grease drawer by reflecting heat upward
• Standing pilot ignition system
• All-welded chassis to support heavy use
• Stainless steel components are durable and resistant to rusting
• 4-in. adjustable legs
• 68,000 total BTU

Dimensions & Utilities

• Broiling area: 21.5 in. W x 22.31 in. D
• Overall: 25.15 in. W x 31 in. D x 15.3 in. H
• Powered by LP gas
• ³⁄₄-in. rear gas connection and gas pressure regulator

From The Manufacturer

Achiever Charbroiler, 25-1/8" W, countertop, (4) cast iron 17,000 BTU burners with standing pilots and cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4" adjustable legs, 68,000 BTU, CSA, NSF, LP gas
